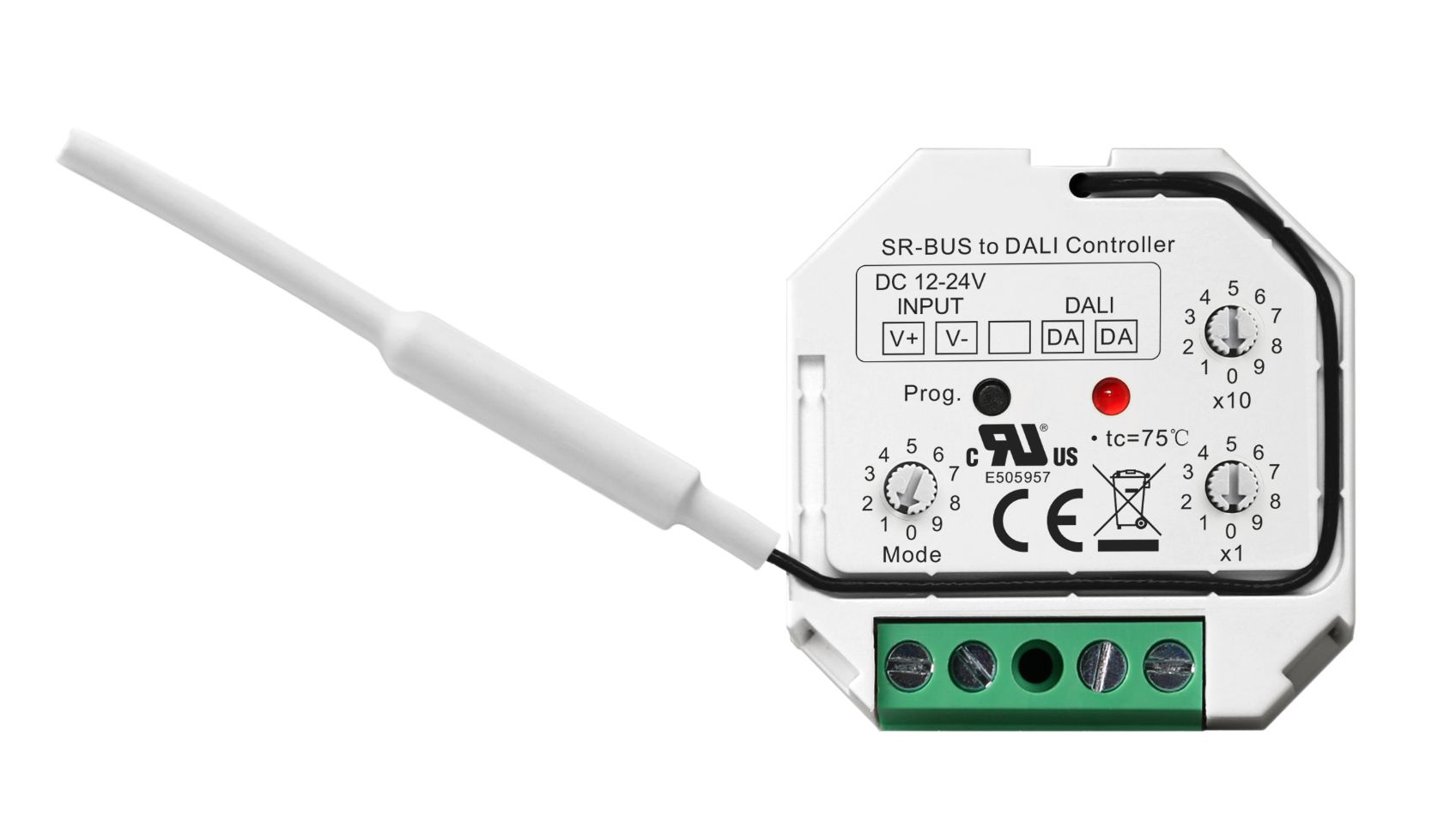

Synergy 21 LED Controller EOS 07 DALI 2,4G bluetooth to DALI Modul

RF+BLE Drahtlos zu DALI Modul.
Ermöglicht die Auswahl verschiedener DALI-Gerätetypen zur Steuerung:
RGBCCT(RGBWA), RGBW(RGBW), RGB(XY-Koordinate), CCT(Tc), DIM, ON/OFF
über die intelligente APP

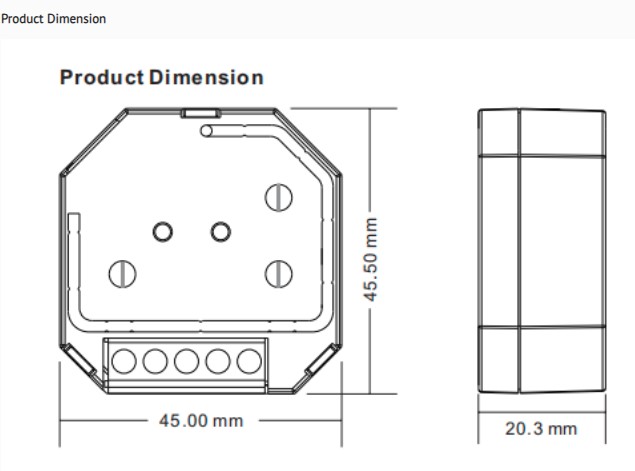

Maße: 45,5x45x20,3mm
Betriebtemperatur: -10°C - +50°C
Schutzklasse: IP20 Input: 12-24V
DALI Verbrauch: <4mA

DALI (Digital Addressable Lighting Interface)

With Bluetooth signal input and DALI signal output, this 4-in-1 Bluetooth to DALI Controller can be controlled through both RF remote and smart App, and no gateway is required. It can be easily and quickly pair to the Smart App by scanning QR code. By virtue of mesh network, this controller has much longer control distance, and transmits received signal to neighbor devices. It can control some DALI device types, such as DT6 and DT8, and the last type includes Tc, XY coordinates and RGBW. Moreover, this device enables to select different DALI device types to control: RGBCCT(RGBWA), RGBW(RGBW), RGB(XY coordinate), CCT(Tc), DIM, ON/OFF using the smart APP, enables to select Group control or Address control to DALI line by rotary switch, enables to control 1 DALI Group of devices or 1 DALI Address on DALI line, enables to control all devices on DALI line via broadcast, and enables to select any DALI Group (0-15) or DALI Address (00-63) to control by rotary switches.

Key Features

• Bluetooth to DALI converter, Bluetooth mesh network

• Bluetooth signal input, DALI signal output, 12-24VDC power supply

• Controlled through both RF remote and smart App, no gateway required

• Easy & quick pairing to the smart App by scanning QR code

• Mesh network, much longer control distance, transmits received signal to neighbor devices

• DALI current consumption less than 4mA

• Controlled DALI device type can be DT6 or DT8, device type selectable by rotary switch

• Controlled DT8 device color type: Tc, XY coordinates, RGBW selectable by rotary switch

• Enables to select different DALI device types to control: RGBCCT(RGBWA), RGBW(RGBW), RGB(XY coordinate), CCT(Tc), DIM, ON/OFF using the smart APP

• Enables to select Group control or Address control to DALI line by rotary switch

• Enables to control 1 DALI Group of devices or 1 DALI Address on DALI line

• Enables to control all devices on DALI line via broadcast

• Enables to select any DALI Group (0-15) or DALI Address (00-63) to control by rotary switches

• Each DALI line can install multiple controllers for multi control points

• Waterproof grade: IP20

Specifications
