Synergy 21 LED Flächenstrahler 100W RGB-WW (RGB-CCT) Zigbee 3.0 + 2,4G IP65 230V *Milight/Miboxer* 1
- Artikel-Nr.: 236077
- Hersteller-Nr.: FUTT07ZR
Downloads
Datenblatt
FUTT07ZR
100W RGB+CCT LED Floodlight (Zigbee 3.0 + 2.4G)
• 16 Millions of colors to choose... mehr
Produktinformationen "Synergy 21 LED Flächenstrahler 100W RGB-WW (RGB-CCT) Zigbee 3.0 + 2,4G IP65 230V *Milight/Miboxer* 1"
FUTT07ZR
100W RGB+CCT LED Floodlight (Zigbee 3.0 + 2.4G)
• 16 Millions of colors to choose
• Brightness and color temperature adjustable
• Adjust saturation
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 50m (open area)

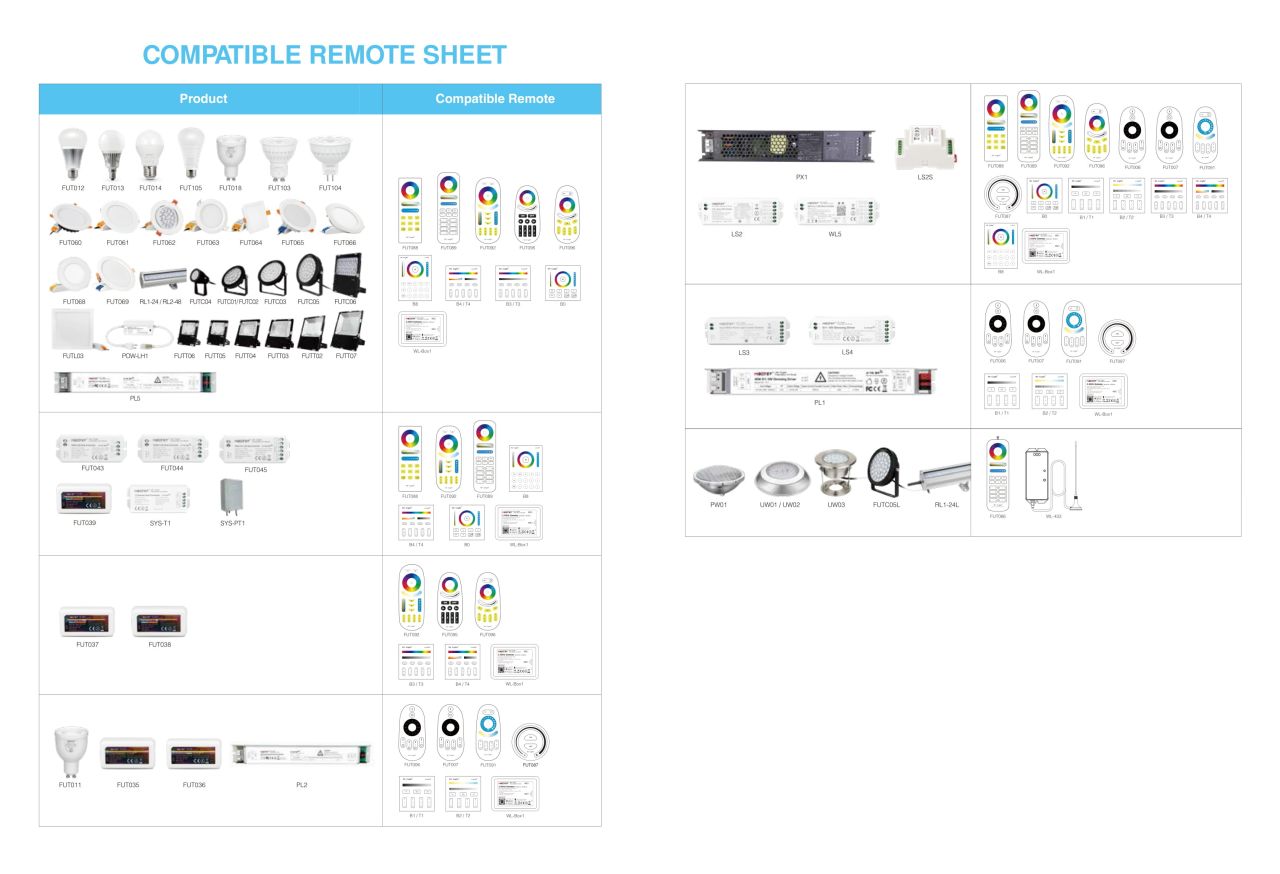

• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
Features
Zigbee 3.0 standard wireless transmission technology with lower power consumption, mesh network with strong ability for anti-interference.
It supports individual or multi zones control, wide application for home or commercial lighting.
Paired with MiBoxer Zigbee 3.0 gateway to have function like wireless dimming, remote control, timmer, group control, music rhythm.
It can work with 2.4G RF remote.
- Zigbee 3.0 standard protocol
- Brightness and color temperature adjustable
- Support PUSH dimming
- Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control)
- Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
- Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent
- Have DND function, usually used in power failure area and save power
- Support TUYA SMART app control (Zigbee 3.0 gateway is needed)
- Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (Zigbee 3.0 gateway is needed)
- Support DMX512 control (requires DMX512 LED transmitter)
Parameters
| Product Name: | 100W RGB+CCT Flood Light |
|---|---|
| Model No.: | FUTT07ZR |
| Input Voltage: | AC100~240V 50/60Hz |
| Power: | 100W |
| PF: | >0.9 |
| CRI: | >80 |
| Color temperature: | 2700~6500K |
| Luminous Flux: | 10000LM |
| Luminous efficiency: | 100LM/W |
| Beam Angle: | 160° |
| Protocol: | Zigbee 3.0 + 2.4GHz RF |
| Control Distance: | Zigbee: 50M(open area) 2.4G RF : 30M |
| IP rate: | IP65 |
|---|---|
| Working Temperature: | -10~40? |
| Dimming Grayscale: | 4096 Levels |
| Dimming Range: | 0.1%-100% |
| Dimming Curve: | Logarithmic |
| EMC Standard (EMC): | ETSI EN301 489-1 V 2.2.3(2019-11) ETSI EN301 489-3 V2.1.1(2019-03) |
| Safety Standard (LVD): | EN 62560:2012+A1; 2015+A11:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Abstrahlwinkel: | 160 |
| CRI: | >80 |
| Dimmbar: | ja |
| Grösse: | 295*60*402,32 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | RGB-WW |
| Lichtfarbe in Kelvin: | 2700~6500 |
| Lumen: | 7500-8500 |
| Schutzklasse: | IP65 |
| Volt: | 230 |
| Watt: | 100 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 100 |
| Lumen: | 8000 |
| Watt: | 100 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
Produkt Video
